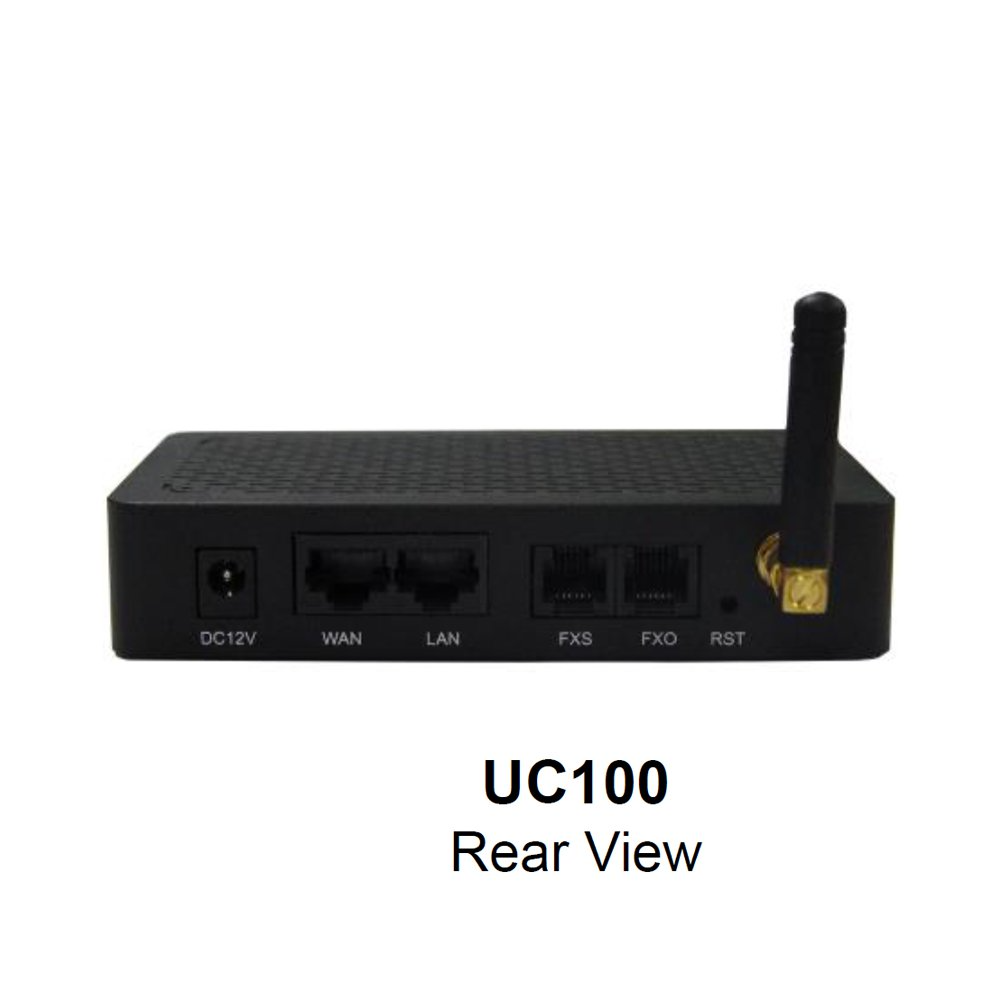

Dinstar UC100 All-in-one Box UC Gateway

Dinstar UC Gateway's UC100 All-in-One Box is a multi-operational gateway that integrates data and telephony services. This allows the device to deploy a powerful routing scheme. Through adaptive functionality, the UC-100 matches the FXO impedance with exchange support for the local extension.

Share this Product:

Security policy

Call US 12/6 +91 922 222 8181

Call us for info on stock / delivery / pricing Details.

Delivery policy

Live Whatsapp  +91 922 222 8989

Whatsapp Live agent for immediate Purchase Support.

Return policy

Dealer Helpline +91 922 222 1378

Exclusive Dealer helpline for Purchase Queries / Support.


Free Shipping

On all orders over $500


Free Returns

Returns are free within 7 days


Support 24/7

Contact us 24 hours a day


100% Secure Payment

Your payment is safe with us



The UC-100 all-in-one UC gateway unit features a single unit that supports data services, GSM, FXO, and FXS. It is capable of transmitting and communicating from any network to any network. Plus, it includes a versatile dial plan as well. Users also get service, number, and time provider routing with the device. Other than that, the device offers Local CDR and custom IVR with instant transmission for both sending and receiving messages. The remaining features include Wi-Fi AP and NAT router.

FXO, FXS, and GSM voice interfaces are included in the Dinstar UC100 All-in-one Box UC Gateway. It supports numerous voice interfaces and maintains a stable connection to PSTN, PLMN, and VoIP networks. Because it is a SIP gateway, it can communicate effectively not only with VoIP networks but also with the other four GSM frequency types. It satisfies the requirements of a powerful global mobile network transmission in this way. The UC-100 also has high-speed data access and Wi-Fi capabilities. Users can utilize the LAN port or Wi-Fi connection to access the internet and download files quickly. The VPN transfer capability makes personal use of the Dinstar UC-100 all-in-one gateway almost seamless. Small and medium enterprises that require robust VoIP capability, instant messaging, and a high-speed internet connection will benefit from the device.


  • Based on an open network API protocol and has a GSM frequency range of 850/900/1800/1900MHz.
  • With a DC 12V/1A input power source, it provides communication and carrier network selection functions.
  • Requires 10 watts of power to operate.
  • Environmental characteristics include an operating temperature range of 0 to 40 degrees Celsius.
  • When it comes to storage, the temperature should be between -10 and 80 degrees Celsius.
  • Aside from that, the device’s dimensions are 125mm x 76mm x 25mm.

Mumbai Dinstar DAG3000 32S O High end Analog VoIP Gateway | AcmaTel Communications

Do you want to talk to one of our Telephony experts about your project?

Please feel free to fill out our Inquiry Form if you have any telephony solutions that you’d want to discuss. Within the following 12 working hours, one of our business experts will contact you.

Product Tags:

Product Specification


Call and Routing
Ring Groups Yes
Automated attendant Yes
Call Routing Group Yes
Caller/Called Number Manipulation Yes
Custom IVR Yes
Dial Plan Yes
Failover Call Routing Yes
Number based Call Routing Yes
Service provider based Call Routing Yes
Time based Call Routing Yes
Dimensions(W/D/H) (WxDxH)125*76*25
Operating Temperature 0 ℃~ 40 ℃
Storage Temperature -20 ℃ ~80 ℃
Ethernet Interfaces
1 LAN 10/100M Base-T RJ45 Yes
1 WAN 10/100M Yes
Hardware Interfaces
IPPBX Function List
3-way Conference Yes
Automated Attendant Yes
Call Detail Records(CDR) Yes
Call Forward on Busy Yes
Call Forward on No Answer Yes
Call Forward Unconditional Yes
Call Groups Yes
Call Hold Yes
Call Transfer, Do Not Disturb, Hotline Yes
Call Waiting Yes
Direct inward dial(DID) Yes
Interactive Voice Response(IVR) Yes
Ring Groups Yes
LED Indicators:
Power, Run, WIFI,Network and Line LEDs Yes
Wireless: Wifi 2.4Ghz 802.11n Yes
Mobile Features
BCCH Management Yes
Caller ID Restriction for Outgoing Call Yes
Carrier Selection Yes
Frequency Range- GSM: 850/900/1800/1900MHz
Open API Protocol Yes
PIN Code Management Yes
Polarity Reversal Yes
SMS Coding/Decoding ASCII/UCS2
•Call Duration Limitation for SIM Card/Single Call Yes
Power Supply
Power Consumption (Typical): 10W (Typical)
Input DC 12V/1A
IP v4/v6, UDP/TCP Yes
SIP/IMS/H323 Yes
Static IP/PPPoE/DHCP Yes
VPN(Pass-through) Yes
SIP Protocol
SIP V2.0 RFC3261 Yes
Configurable SIP Release Code Yes
DNS SRV/A Query Yes
NAT Traversal Yes
Outbound Proxy Yes
SDP RFC2327 Yes
Session Timer RFC4028 Yes
SIP Extensions Yes
SIP Master/Slave Server Yes
SIP Registration Yes
SIP Trunk Yes
FXO Gain Auto Detect Yes
Adaptive (Dynamic) Jitter Buffer Yes
Call Progress Tone Generation Yes
Comfort Noise Generation(CNG) Yes
DTMF mode Yes
Echo Cancellation(G.168) Yes
G.711A/U law, G.723.1, G.729A/B,G.726 Yes
Hook Flash Yes
Programmable Gain Control Yes
Silence Suppression & Detection Yes
T.38/Pass-Through FAX Yes
Voice Activity Detection(VAD) Yes
