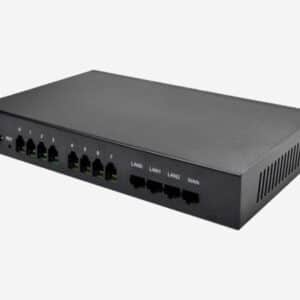

Dinstar DAG1000 4 and 8 Port FXS VoIP Gateway

This is because it aids in the provision of a low-cost, interoperable VoIP solution. Dinstar 4 and 8 Port FXS VoIP Gateways may connect fax, analog phones, and PBS to a standard VoIP interface and provide high-quality voice transmission. Through the usage of a suitable SIP protocol, the DAG1000-8FXS comprises a VoIP access gateway that makes use of its compatible components to operate a number of leading platforms such as SIP servers, IPPBX, and NGN/IMS.

Share this Product:

Security policy

Call US 12/6 +91 922 222 8181

Call us for info on stock / delivery / pricing Details.

Delivery policy

Live Whatsapp  +91 922 222 8989

Whatsapp Live agent for immediate Purchase Support.

Return policy

Dealer Helpline +91 922 222 1378

Exclusive Dealer helpline for Purchase Queries / Support.

features

Free Shipping

On all orders over $500

features

Free Returns

Returns are free within 7 days

features

Support 24/7

Contact us 24 hours a day

features

100% Secure Payment

Your payment is safe with us


Description

The Dinstar DAG1000 family of gateways is known for its flexible routing and ease of use. There is also support for IPv6 and IPv4 with primary backup for SIP protocols and servers. It also provides access to a cloud-based management system for user-friendly storage and transmission, as well as high-end bandwidth optimization. For versatile interoperability, the DAG1000-4S/8S unit includes RJ-11 and 8FXS interfaces. Reverberate cancellation, SIPv2 convention, NAT traversal with both dynamic and static transmissions, and other features are included in the device. In addition, the device’s dialing modes include DTMF and beat. There’s also a caller ID with the occupied tone, current location, and extremity inversion identification. Pleasant tumult time is possible with the DAG1000-4S/8S FXS Analog VoIP device. Furthermore, the device works in tandem with the tranquil disguised component to maintain the voice fresh and clear.

Features of Dinstar 4 and 8 Port FXS VoIP Gateway

  • 8 FXS ports, 1 WAN, 3 LAN.
  • Support SIP, IMS.
  • T.38 Fax.
  • Flexible routing & Dial plan.
  • Interoperable with leading softs witches, IP PBXs, and SIP servers.

Buy Dinstar DAG1000 4 and 8 Port FXS VoIP Gateway | AcmaTel Communications

Do you want to talk to one of our Telephony experts about your project?

Please feel free to fill out our Inquiry Form if you have any telephony solutions that you’d want to discuss. Within the following 12 working hours, one of our business experts will contact you.

Product Tags:

Product Specification

Specification

Call & Routing
32 inbound routing rules Yes
32 outbound routing rules Yes
DHCP Yes
Dial planl Yes
FXO port group Yes
Number manipulation Yes
Primary and secondary SIP account Yes
Environmental
Compliance Yes
Dimensions(W/D/H) 240(L)×154(W)×37(H)mm 1kg
Humidity 10%-90% Non-Condensing
Operating Temperature 0 ℃~ 40 ℃
Power Consumption 18W
Power Supply 100-240VAC,50-60Hz
Storage Temperature -20 ℃~80 ℃
FXS Features
Max Cable Length : 5KM
Pulse 10 and 20 PPS
Caller ID DTMF/FSK
Connector RJ11
Dial Mode DTMF and Pulse
Programmable Call Progress Tone Yes
Reversed Polarity Yes
Homologation
Elastix / Broadsoft Yes
CE,FCC Yes
Maintain and upgrade
Access Rule List Yes
Cloud-based Management Yes
Configuration Backup/Restore Yes
Firmware Upgrade via WEB/TFTP Yes
Auto Provisioning Yes
Automatic Time Synchronization Yes
IVR local Maintenance Yes
Network Capture Yes
Outward Test(GR909) Yes
SNMP/TR069 Yes
Syslog and CDR Yes
Web/Telnet Yes
Network Features
DIFFServ Yes
PPPoE Yes
Voice/Data/Management VLAN Yes
DHCP client Yes
IPv4 Yes
IPv6 Yes
Static IP Yes
Static/dynamic ARP Yes
ToS Yes
Tracert Yes
Traffic Shaping Yes
Physical Interfaces
Ethernet Interface 4* RJ-45 10/100Mbps, RJ-45
Telephone interface 4FXS, 8FXS, RJ-11
Protocol
DHCP/PPPoE Yes
DNS/DNS SRV (RFC 1706/RFC 2782) Yes
IMS/3GPP Yes
RTP/RTCP (RFC 1889,1890) Yes
SDP (RFC 2327) Yes
ARP/RARP (RFC 826/903) Yes
REFER (RFC 3515) Yes
SIP V2.0 (RFC 3261,3262,3264) Yes
SNTP (RFC 2030) Yes
STUN (RFC 3489) Yes
TFTP/HTTP/HTTPS Yes
VLAN 802.1P/802.1Q Yes
Supplement Service
Blind Transfer Yes
3-way conference Yes
Attend Transfer Yes
Call Forward on Busy Yes
Call Forward on No Reply Yes
Call Hold Yes
Call Pickup Yes
Call Waiting Yes
DND Yes
Hotline Yes
Unconditional Call Forward Yes
Voicemail Yes
Voice & Fax
Hook Flash Yes
Adaptive (Dynamic) Jitter Buffer Yes
Comfort Noise Generation(CNG) Yes
DTMF mode Signal/RFC2833/INBAND
Echo Cancellation(G.168) Yes
Layer3 QoS and DiffServ Yes
Programmable Gain Control Yes
T.38/Pass-through/Modem FAX mode,Up to 14.4kbps Yes
VLAN 802.1P/802.1Q Yes
Voice Activity Detection(VAD) Yes
