Dinstar UC100(LTE) All-in-one UC Gateway

The Dinstar UC-100 multi-channel gateway provides phone and data integration as well as multi-network capabilities. The device provides a user-friendly interface for the web world, with a Wi-Fi hotspot and high-speed NAT traversal. Thanks to the 32 SIP extensions included in its built-in SIP server system, it may be operated in a variety of ways.

Share this Product:

Security policy

Call US 12/6 +91 922 222 8181

Call us for info on stock / delivery / pricing Details.

Delivery policy

Live Whatsapp  +91 922 222 8989

Whatsapp Live agent for immediate Purchase Support.

Return policy

Dealer Helpline +91 922 222 1378

Exclusive Dealer helpline for Purchase Queries / Support.

features

Free Shipping

On all orders over $500

features

Free Returns

Returns are free within 7 days

features

Support 24/7

Contact us 24 hours a day

features

100% Secure Payment

Your payment is safe with us


Description

For voice, the Dinstar UC100 LTE All-in-one UC Gateway supports VoIP and PSTN, and for data, it allows customers to choose between WCDMA 3G and LTE 4G connectivity. It provides customers with three voice interfaces, namely FXS, FXO, and GSM/LTE, for seamless interaction with the VoIP, PSTN, and PLMN networks. Because it is a SIP gateway, it can support WCDMA/GSM/LTE frequency bands as well as VoIP networks. It satisfies all of the demands of the mobile networking platform on a worldwide scale in this way. It also provides high-speed data connectivity and Wi-Fi connectivity. Through its Wi-Fi and LAN port options, customers may enjoy quick downloading and surfing. Users may experience a single device that handles all LTE, GSM, FXS, and FXO interfaces with the DInstar UC-100 gateway unit. The gadget can send and receive calls over GSM, LTE, and FXO networks from a PLMN/PSTN line. There is also a dial plan that is adjustable in terms of numbers, time, and IP. The IVR protocol can be customized on the device as well.

Features

  • Ring Group and routing group software are also included in the Dinstar UC line of LTE-enabled smartphones.
  • Manipulates called or caller numbers.
  • The routing base supports source trunks, time periods, and caller/called prefixes.
  • Failover routing is also supported by dial rules.
  • Aside from that, the UC-100 LTE gateway can match the best FXO impedance option for a faultless connection.
  • Customization of the IVR and the ability to use an auto-attendant.
  • Customers will be able to obtain call detail records (CDRs) as needed from this device.

Do you want to talk to one of our Telephony experts about your project?

Please feel free to fill out our Inquiry Form if you have any telephony solutions that you’d want to discuss. Within the following 12 working hours, one of our business experts will contact you.

Product Tags:

Product Specification

Specification

FXO
Answer Delay Yes
Busy Tone Detection Yes
Caller ID FSK, DTMF
Connector RJ11
No Current Detection Yes
Polarity Reversal Yes
FXS
Answer and Disconnect Signaling Yes
Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
Connector: RJ11
Hook Flash Yes
Polarity Reversal Yes

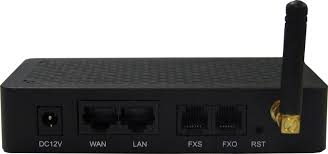

Physical Interfaces:
Ethernet Interfaces 1WAN&3LAN 10/100 Base-T RJ45
FXO Port: 1
FXS Port 1
SIM Slot: 1
WIFI 1WAN&3LAN 10/100 Base-T RJ45
Software Features
Auto Attendant Function Yes
Busy Tone Detection Yes
Call Minutes Limitation for Ports/Single Call Yes
Caller/Called Number Manipulation Rules Yes
CDRs Yes
Dial Rules Yes
Failover Routing Yes
FXO Impedance Auto Match Yes
IVR Customization Yes
Random Call Interval Yes
Ring Group Yes
Routing Base on Caller/Called Prefixes Yes
Routing Base on Source Trunks Yes
Routing Base on Time Period Yes
Routing Groups Yes
Voice Capabilities
Adjustable Gain Control Yes
Automatic Gain Control (AGC) Yes
Call Progress Tones: Yes
Codecs SIP over UDP/TCP/TLS,SDP,RTP/SRTP
Comfort Noise Generator(CNG) Yes
DTMF RFC2833/SIP Info/In-band
Dynamic Jitter Buffer Yes
Echo Cancellation Yes
FAX T.38 and Pass-through
NAT STUN/UPnP
Silence Suppression Yes
Voice Activity Detection(VAD) Yes
VoIP Protocols SIP over UDP/TCP/TLS,SDP,RTP/SRTP
