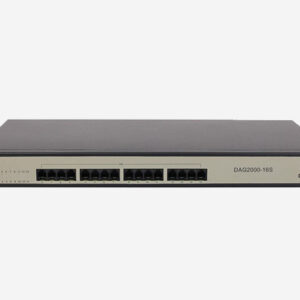

Dinstar DAG2000 16 Port FXS VoIP Gateway

The DAG2000-16S FXS VoIP device supports open-standard SIP as well as IPv4 and IPv6, as well as organizational conventions. This route is accredited by Broadsoft/Elastix and is fully compatible with both SIP-based IP communication stages and NGN/IMS frameworks. The DAG2000-16S FXS Analog VoIP unit acknowledges a pleasant commotion era. A silent hiding device is also included in the device to keep the voice fresh and clear.

Share this Product:

Security policy

Call US 12/6 +91 922 222 8181

Call us for info on stock / delivery / pricing Details.

Delivery policy

Live Whatsapp  +91 922 222 8989

Whatsapp Live agent for immediate Purchase Support.

Return policy

Dealer Helpline +91 922 222 1378

Exclusive Dealer helpline for Purchase Queries / Support.

features

Free Shipping

On all orders over $500

features

Free Returns

Returns are free within 7 days

features

Support 24/7

Contact us 24 hours a day

features

100% Secure Payment

Your payment is safe with us


Description

A controlled supply of 100-240V AC with a frequency of 50 to 60 Hz is required for the DAG2000-16S. The device uses 35 watts of electricity. The temperature necessary to operate the device is regulated between 0 and 45 degrees Celsius during operation. The capacity temperature is fixed at – 20 C to 80 C when the device is not in use. The DAG2000 unit is set at a moisture level ranging from 10% to 90%, with no consolidating angles. The dimensions of this device are 440mm x 230mm x 44mm, with a maximum wire length of 5 kilometres. The device is 2.7 kg in weight and meets CE and FCC requirements.

The DAG2000-16S FXS is suitable for dependable transmission in order to keep the minimum design running. Simple architecture, such as phones and fax machines, was considered when designing this device. Another useful feature of this device is VAD, or voice action identification, which improves reverberation cancellation significantly. The gadget includes a programmable pickup control, a 3-way conference protocol, and an adjustable jitter buffer. The device can automatically forward the call if the receiver does not answer.

Features

  • Cost-effective 16 Ports FXS gateway.
  • Support IPv4 and IPv6.
  • Fax over IP (T.38 and Pass-Through).
  • Multiple codecs: G.711A/U,G.723.1,G.729A/B,AMR,G.726 etc.
  • Fully compatible with Leading IMS/NGN, SIP-based IP telephony system.



Buy Dinstar DAG2000 16 Port FXS VoIP Gateway | AcmaTel Communications

Do you wish to discuss your project with our Telephony experts?

If you have got any telephony solutions to require that you wish to discuss, then please feel free to fill our Inquiry Form. One of our business experts would connect with you within the next 12 working hours.

Product Tags:

Product Specification

Specification

Call & Routing
32 inbound routing rules Yes
32 outbound routing rules Yes
DHCP Yes
Dial planl Yes
FXO port group Yes
Number manipulation Yes
Primary and secondary SIP account Yes
Environmental
Dimensions(W/D/H) 440(L)×230(W)×44(H)mm 2.7kg
Humidity 10%-90% No condensation
Operating Temperature -10 ℃ ~ 45 ℃
Power Consumption 35W
Power Supply 100-240V,50-60Hz
Storage Temperature -20 ℃ ~80 ℃
FXS Features
Max Cable Length : 5KM
Pulse 10 and 20 PPS
Caller ID DTMF/FSK
Connector RJ11
Dial Mode DTMF and Pulse
Programmable Call Progress Tone Yes
Reversed Polarity
Homologation
Elastix / Broadsoft Yes
CE,FCC Yes
Maintain and upgrade
Access Rule List Yes
Cloud-based Management Yes
Configuration Backup/Restore Yes
Firmware Upgrade via WEB/TFTP Yes
Auto Provisioning Yes
Automatic Time Synchronization Yes
IVR local Maintenance Yes
Network Capture Yes
Outward Test(GR909) Yes
SNMP/TR069 Yes
Syslog and CDR Yes
Web/Telnet Yes
Network Features
DIFFServ Yes
PPPoE Yes
Voice/Data/Management VLAN Yes
DHCP client Yes
IPv4 Yes
IPv6 Yes
Static IP Yes
Static/dynamic ARP Yes
ToS Yes
Tracert Yes
Traffic Shaping Yes
Physical Interfaces
Ethernet Interface 4*RJ-45 10/100 Base-Tx, RJ-45
Telephone interface 16FXS, RJ-11
Protocol
DHCP/PPPoE Yes
DNS/DNS SRV (RFC 1706/RFC 2782) Yes
IMS/3GPP Yes
RTP/RTCP (RFC 1889,1890) Yes
SDP (RFC 2327) Yes
ARP/RARP (RFC 826/903) Yes
REFER (RFC 3515) Yes
SIP V2.0 (RFC 3261,3262,3264) Yes
SNTP (RFC 2030) Yes
STUN (RFC 3489) Yes
TFTP/HTTP/HTTPS Yes
VLAN 802.1P/802.1Q Yes
Supplement Service
Blind Transfer Yes
3-way conference Yes
Attend Transfer Yes
Call Forward on Busy Yes
Call Forward on No Reply Yes
Call Hold Yes
Call Pickup Yes
Call Waiting Yes
DND Yes
Hotline Yes
Unconditional Call Forward Yes
Voicemail Yes
Voice & Fax
Hook Flash Yes
Adaptive (Dynamic) Jitter Buffer Yes
Comfort Noise Generation(CNG) Yes
DTMF mode Signal/RFC2833/INBAND
Echo Cancellation(G.168) Yes
Layer3 QoS and DiffServ Yes
Programmable Gain Control Yes
T.38/Pass-through/Modem FAX mode,Up to 14.4kbps Yes
VLAN 802.1P/802.1Q Yes
Voice Activity Detection(VAD) Yes
