Description

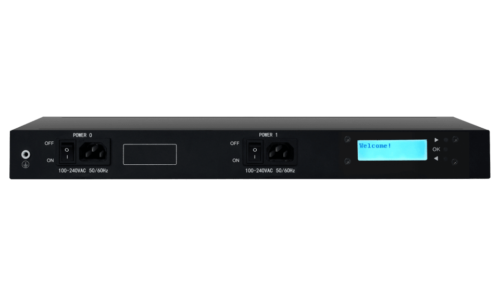

Dinstar UC350 is a next-generation IP PBX designed for high-capacity unified communication systems It is not only suitable for assisting in the development of large and medium-sized enterprises’ telephony systems, but it can also meet the branch office requirements of large group enterprises and government agencies, assisting enterprises and industry customers in the establishment of a convenient and efficient IP telephone system. Dinstar UC350 is a next-generation IP PBX designed for high-capacity unified communication systems. It supports 1000 extensions and 200 concurrent calls and is built on a powerful hardware platform that includes voice, video, paging, fax, conference, recording, and other useful functions. It also has four slots for installing E1/T1 boards, FXS, and FXO boards via hot-plug mode, allowing it to be configured and combined flexibly based on actual use scenarios. It is not only suitable for assisting in the development of large and medium-sized enterprises’ telephony systems, but it can also meet the branch office requirements of large group enterprises and government agencies, assisting enterprises and industry customers in the establishment of a convenient and efficient IP telephone system. Furthermore, the UC350 provides an intuitive and simple-to-use graphical interface to aid in user management and maintenance. Users can easily integrate with third-party CRM and dispatching platforms using the open API, providing a convenient and intelligent one-stop telephony solution for enterprises.
Hardware Physical Interfaces: 2* MCU Boards Optional FXS Board: 2* RJ45 with 8 FXS FXO Board: 2* RJ45 with 8 FXO E1/T1 Board: 4* E1/T1 Ports MCU Board 2*100/1000M, Base-T, RJ45
1 USB 2.0 port 1 console port
Voice Capabilities Capabilities for Speaking SIP over UDP/TCP/TLS, RTP/SRTP Codecs: G.711, G.723.1, G.729A/B, G.722, G.726, OPUS Silence Suppression Comfort Noise Maker (CNG) Voice Activity Recognition (VAD) G.168 with up to 128ms Dynamic Jitter Buffer for Echo Cancellation Gain Control is Adjustable AGC stands for Automatic Gain Control. Dial Tone, Ring Back Tone, and Busy Tone are the call progress tones. T.38 FAX and Pass-through STUN/UPnP NAT RFC2833/Signal/Inband VPN Server/Client DTMF
FXS: RJ45 connector Bellcore Type 1&2, ETSI, BT, NTT, and DTMF caller ID Disconnect and Answer Answer, Disconnect, and Busy Tone Polarity Reversal Hook Flash
PBX Services Call Forward (Unconditional/No Answer/Busy) PBX Services Contact the Waiting Call Holding Call Transfer Hotline. Do-not-disturb Queue for 3-Way Conference Ring Group Calls Groups for Routing Caller/Phone Number Manipulation Routing Determined by Time Period Based on Caller/Called Prefixes, RoutingSource Trunk-Based Routing Dial Procedures Failover Routing IVR Auto-attendant with Multiple Levels CDRs Voicemail Message Recording Up to 1000 SIP Extensions are possible. There can be up to 200 concurrent calls. Client Voicemail to Email Paging Event Report Email
Maintenance: Configuration of the Web GUI Restoring/Backing Up Telnet Management Configuration HTTP/TFTP/FTP Firmware Supported in Multiple Languages Upgrade Automatic Provisioning Syslog
Traffic Statistics from Ping and Tracert: Network Capture for TCP, UDP, and RTP NTP Web User Rights Classification API for HTTP&HTTPS/NATS
Environmental:\s1+1 100-240VAC, 50-60 Hz power supply 50W power consumption Operating temperatures range from 0 to 45 degrees Celsius. Temperature range for storage: -20 °C to 80 °C
Humidity range: 10%-90% Non-Condensing Unit Weight: 5.7 kg Dimensions (W/D/H): 43734549mm
Features
- A critical component of IP Telephony and Unified Communications
- 3-Way Conference for Local Recording
- API Access
- Ideal for vertical markets
- Voice, Fax, Modem, and Point-of-Sale
- Up to four interface boards can be used. Easily swappable
- Up to 16 E1/T1 ports are available.
- Up to 32 FXS/FXO ports are available.
- Power Supplies with Redundancy
