Description
A Dinstar SBC8000 Session Border Controller (SBC) is a SIP/IP network core element used in next-generation networks (NGN) to support peer/access connections via SIP/IMS trunks and to interconnect incompatible signaling messages or media flows from endpoint devices and SIP applications. SBC supports SIP/IMS network connections, sip endpoint remote registration, NAT traversal, signaling modification, media control, flexible call routing, codec transcoding, billing, and QoS management in particular. DINSTAR SBC8000 is a new SBC that is software-based. It supports various security mechanisms, call routing based on control policies, carriergrade high availability (HA), and debug tools for service providers and telecom operators, and it provides very rich features for medium and large enterprise SIP network connections.
Software-based SBC: 10,000 concurrent call sessions SBC,5,000 media conversions, SIP registrations totaling 100,000, Scalability of licences, based on demand, High availability 1+1 (HA), SIP logging Use a physical server, a virtual machine, a private cloud, or the public cloud.
Enhanced security: against malicious attacks such as DoS/DDoS, malformed packets, and SIP/RTP flooding Eavesdropping, fraud, and service theft are all prevented at the perimeter. For call security, use TLS/SRTP. Topology concealment in the face of network exposure Dynamic white and black lists, ACL Controls for overload, bandwidth limitation, and traffic control
Key Features: Up to 10,000 concurrent call sessions, 5,000 media transcodings, and 100,000 SIP registrations • Operate on a physical server, virtual machine, and public cloud • Intelligent bandwidth limit and dynamic blacklist • Cross-network, NAT traversal, and high availability (HA) • SIP over TLS, SRTP • Compatible with various codecs: G.711A/U, G.723.1, G.729A/B, iLBC, AMR, OPUS • Flexible call routing
Features
- Anti-attack SIP
- Manipulation of SIP headers
- 800 calls per second CPS
- Malformed packet protection in SIP
- QoS (ToS, DSCP) (ToS, DSCP)
- Maximum of 25 registrations per second
- Maximum of 5000 SIP registrations
- traversal of the NAT
- SIP trunks are limitless.
- Load balancing in real time
- DoS and DDoS attack mitigation
- Engine for routing flexibility
- Policy control over access
- Manipulation of the caller/called number
- Policy-based anti-attack measures

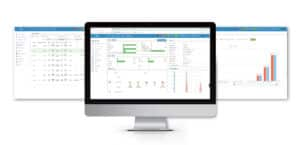

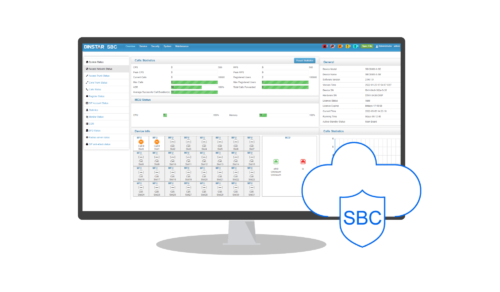

- GUI for configurations on the web
- TLS/SRTP call security
- Backup and restore of configuration
- The White and Black Lists
- Upgrade of HTTP firmware
- List of access controls
- Reporting and exporting CDRs
- VoIP firewall embedded
- Pinging and tracing
- G.711A/U, G.723.1, G.729A/B, iLBC, AMR, and OPUS are all voice codecs.
- The capture of a network
- System log, SIP 2.0 compliant, UDP/TCP/TLS
- SIP trunking (Peer to peer)
- Reports and statistics
- SIP trunking (Access)
- A management system that is centralized
- B2BUA (back-to-back user agent) (back-to-back user agent)
- Remote web and telnet access
- SIP SIP registration rate is limited by request rate.
