Description

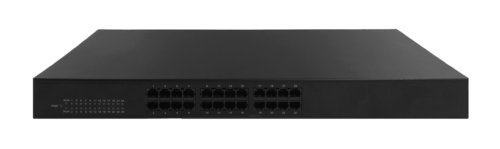

The Synway SMG1000-D24O Analog VoIP Media Gateway offers a 10/100/1000M (optional) Base-T Ethernet connection for connecting legacy PBX to a LAN and is designed for voicemail and unified messaging applications. The analog loop start functionality offers integration through serial protocols, T.38 for fax transmissions over IP, and in-band signaling (DTMF or FSK) (FoIP).
Function
- Physical Phone Interface: 24 FXO and RJ-11 ports are available.
- Ethernet Interface: For some product variants, a female RJ-45 1000M LAN/WAN port is offered in addition to two RJ-45 10/100Mbps Base-T Ethernet ports.
- 24 SIP Channels (SMG1000-D24O) and 24 FXO channels for sessions (SMG1000-D24O)
- Dial Mode: DTMF and Pulse Pulse: 10 and 20PPS for connectivity
- Phone Number: DTMF/FSK
- Cable Length Maximum: 5 KM
Switched Polarity SIP V2.0 OpenVPN TLS/SRTP VoIP Protocols OpenVPN (RFC 3261, 3262, 3264)
RTP/RTCP STUN (RFC3489), IMS/3GPP SDP REFER (RFC 3515), and ARP/RARP (RFC 826/903)
SNTP (RFC 2030) (RFC 2030) DHCP/PPPoE \sTFTP/HTTP/HTTPS - IP Trunks, Call & Routing Port Groups SIP Accounts, both primary and secondary 24 Modification of Inbound/Outbound Routing Numbers Digit load balancing from IP to TDM or IP to IP
fault tolerance for IP - Voice functionality iLBC, AMR, G.711A/U legislation, G.723.1, G.729A/B, and G.726
Noise Generation for Comfort (CNG) and Echo Cancellation (G.168) Signal/RFC2833/INBAND is the DTMF mode. Suppression of silence with soothing noise Call Progress Analysis (CPA) for G.168 automated echo cancellation, incorporating Positive Voice Detection, Positive
Features
- Call budgeting based on the allocated amount, minutes, and call count
- Manageable-based call routing TDP-IP/IP-TDM
- Restrict unwanted calls with a list of denied numbers
- Real-time call record send to CDR server
- Caller ID provisioning
