Description

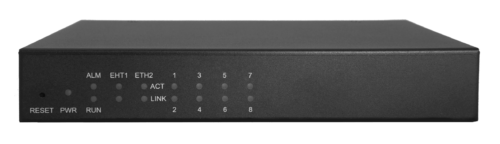

Synway SMG1000-D8S 8Ports FXS Analog VoIP Media Gateway allows users to connect their legacy analog phone systems to modern VoIP networks. The Synway SMG1000-D8S has eight FXS ports, which means it can support up to eight analog phones or other analog devices such as fax machines, modems, or POS terminals. Each FXS port has its own independent phone number and can be configured individually. The gateway is designed to support SIP and H.323 protocols, and it is compatible with most VoIP soft switches and IP-PBXs. It also supports a wide range of voice codecs, including G.711, G.723.1, G.729A/B, and GSM. The Synway SMG1000-D8S comes with a web-based management interface that allows users to configure and monitor the gateway remotely. It also supports various call features such as call forwarding, call transfer, call waiting, and three-way calling.
Function
- Physical Connection Phone Interface: Eight available FXS ports and one RJ-11 port
2* RJ-45 10/100 Mbps Ethernet interface For various product variants, Base-T Ethernet, Female RJ-45 1000M LAN/WAN is required. - Session Capacity 8 FXS channels and 8 SIP channels (SMG1000-D8S) (SMG1000-D8S)
- Dial Mode: DTMF and Pulse Pulse: 10 and 20PPS for connectivity
- Phone Number: DTMF/FSK
- Cable Length Maximum: 5 KM Switched Polarity OpenVPN
- IP Trunks, Call & Routing Port Groups :- The manipulation of eight inbound/outbound routing numbers for the primary and secondary SIP accounts / Digit load balancing from IP to TDM or IP to IP fault tolerance for IP
- Voice functionality iLBC, AMR, G.711A/U legislation, G.723.1, G.729A/B, and G.726 / Noise Generation for Comfort (CNG) and Echo Cancellation (G.168) / Signal/RFC2833/INBAND is the DTMF mode./ Suppression of silence with a soothing noise / Call Progress Analysis (CPA) for G.168 automated echo cancellation, incorporating Positive Voice Detection, Positive
Features
- Better voice quality is provided by designated DSP chipsets, which are supported by 8 FXS ports and are field approved globally
- User-friendliness and web-based administration.
