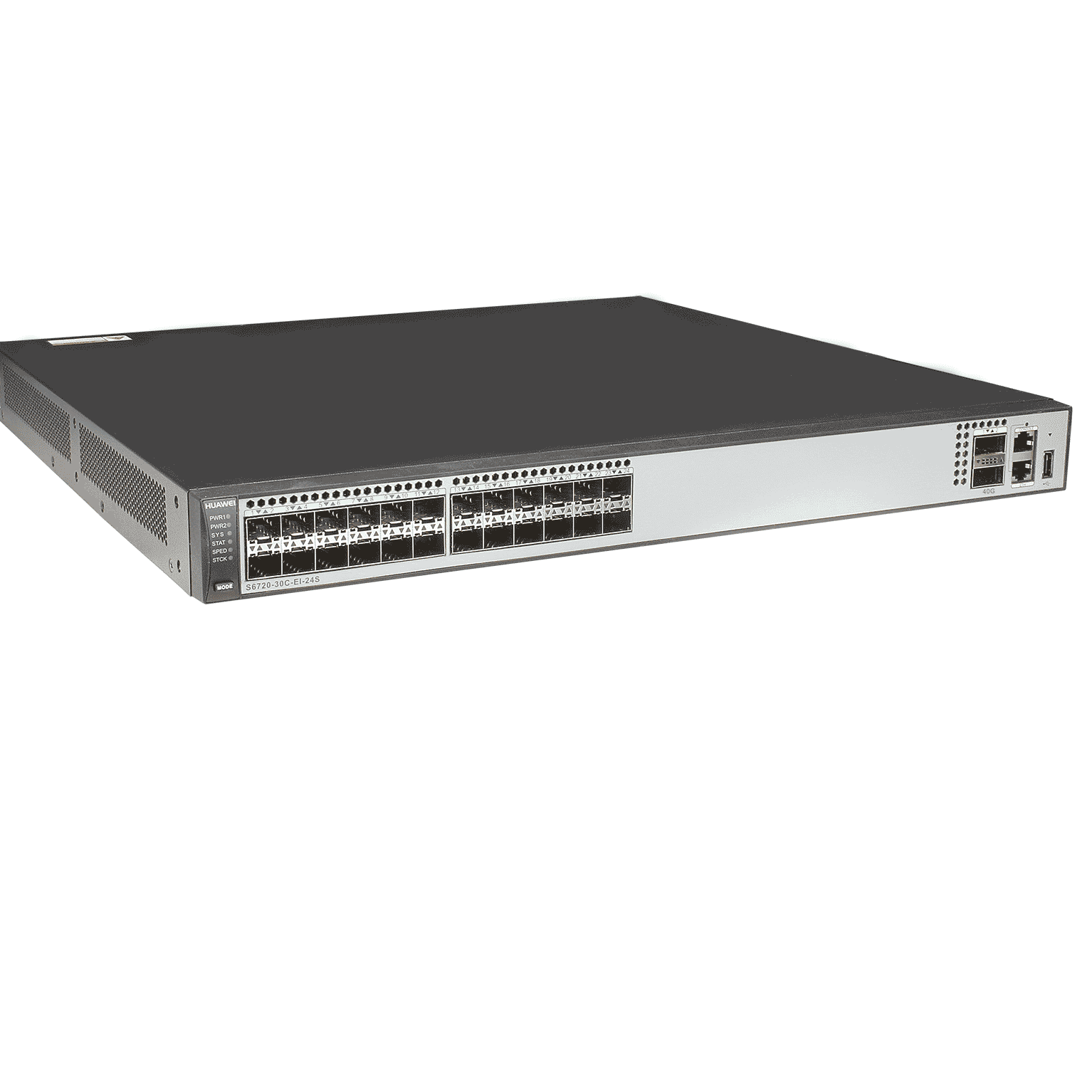

Huawei S6720-EI Switch

One of the Huawei S6720 series switches is the Huawei S6720-30C-EI-24S-AC. For Internet Data Centers (IDCs) and big traditional data centers, the S6720 series provides high-availability, scalable 10 Gbit/s server access. The S6720-EI Series Switches also have the option of adding a 4 x 40 GE QSFP+ interface card, giving them a lot of flexibility: they can be used as a core or aggregation switch in enterprise campus networks, or to provide access to high-bandwidth server-based applications.

Share this Product:

Security policy

Call US 12/6 +91 922 222 8181

Call us for info on stock / delivery / pricing Details.

Delivery policy

Live Whatsapp  +91 922 222 8989

Whatsapp Live agent for immediate Purchase Support.

Return policy

Dealer Helpline +91 922 222 1378

Exclusive Dealer helpline for Purchase Queries / Support.


Free Shipping

On all orders over $500


Free Returns

Returns are free within 7 days


Support 24/7

Contact us 24 hours a day


100% Secure Payment

Your payment is safe with us



The S6720-EI line of high-performance Fixed Switches from Huawei offers a wide range of services, as well as extensive security control rules and numerous QoS functionalities. Huawei S6720-EISwitches can be used to access servers in data centers or as campus network core switches. They are at the top of the list of such gadgets in the business due to their advantages. 10G network cards should be utilized to ensure enough bandwidth for multiple servers, especially in data centers. The S6720-EI fixed switch, with high-performance 10GE ports, is appropriate for such centers. The Huawei S6720-EI features a high switching capacity and a high density of all 10 GE ports. Up to 6 line-speed, QSFP + ports, and 48 10GE ports are available on each S6720-EI switch. The S6720-EI ports can identify types of optical modules and support 1 GE and 10 GE access, maximizing return on investment and allowing users to deploy services more flexibly. When data center traffic is high, the S6720-EI enables non-blocking transmission thanks to its enormous buffer capacity and intelligent buffer planning system.

The Huawei S6720-EI switch has a number of security features to protect against DoS attacks, as well as attacks on networks and individual users. SYN Flood, Land, Smurf, and ICMP Flood attacks are examples of DoS attacks. BPDU STP/ root assaults are referred to as network attacks. Huawei DHCP, which creates user-defined entries based on access interfaces, MAC addresses, IP addresses, IP address leases, and VLAN IDs, is supported by the Huawei S6720-EI. Packets that do not match any binding entries, such as ARP or IP impersonation packets, are rejected by DHCP tracking. This prohibits hackers from launching attacks on campus networks via ARP packets.

Features of  Huawei S6720-EI Switch

  • 24×10GE SFP+, 2×40GE QSFP+ ports.
  • One extended slot for 4×40GE QSFP+ interface card.
  • Double hot-swappable AC/DC power supplies.
  • Forwarding performance: 720 Mpps.
  • Switching capacity: 2.56 Tbps.

Would you like to discuss your project with one of our telephony experts?

If you have any questions about telephony solutions, don’t hesitate to fill out our Inquiry Form. One of our business specialists will get in touch with you within the next 12 working hours.

Product Tags:

Product Specification

Ports 48 ports 10 GbE (SFP+)
2 ports 40 GbE (QSFP+)
1 expansion slot;
1 console port (RJ45);
1 port out-of-band management 10/100 MbE (RJ45);
1 USB port
Capacity 2.56 Tbit/s
Speed of packet redirection 1 080 Mp/s
Layer 2 Features
MAC address plate 288 000 entries (enhanced-mac mode)
VLAN IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation
Switching in layer 2 STP/ RSTP/ MSTP; VBST; SEP; RRPP; ERPS (G.8032)
IGMP snooping v1/ v2/ v3
IGMP Groups 4 096
Multicast VLAN (MVR) Supported
Multicast Routing PIM-DM; PIM-SM; PIM-SSM
Layer 3 features
ARP table 44 000 alerts (enhanced-arp mode)
Drawing board IPv4: 128 000 routes (enhanced-ipv4 mode)
IPv6: 80,000 routes (enhanced-ipv4 mode)
IP Routing Static Routing; RIPv1/ 2; OSPFv2; IS-IS; BGP; VRRP
Supported Local AAA
DHCP server
DHCP Relay option82
DHCP Snooping
Loop detection
IP Source Guard
Capacity policy
Broadcast, multicast, unknown unicast suppression
Management functions Telnet; SSH; Web management; LLDP; SNMP v1/ v2/ v3; RMON; Syslog; NTP
Scope of work
Humidity 5 to 95% (non-condensing)
Operating temperature 0 to 45°C
Power supply, dimensions, and weight
Power supply AC power supply:
Type: interchangeable
Number: 2
Input voltage range: 100 to 240 V AC, 50-60 Hz
Maximum power consumption 296,1 W
Volume 72.1 dBA
Dimensions (W x S x G) 44,4 (1U) х 442 х 420 mm
Maximum weight 10.2 kg
