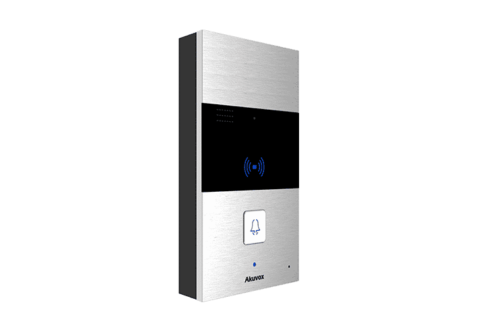

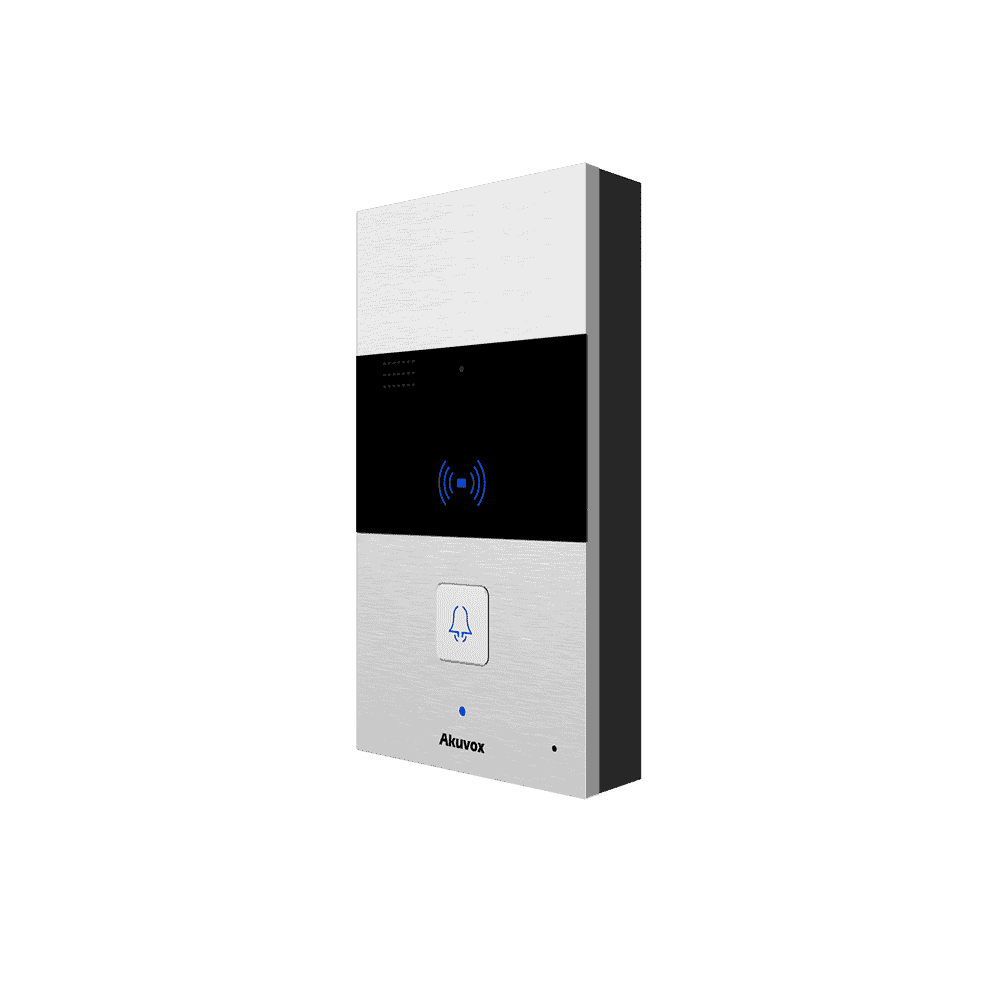

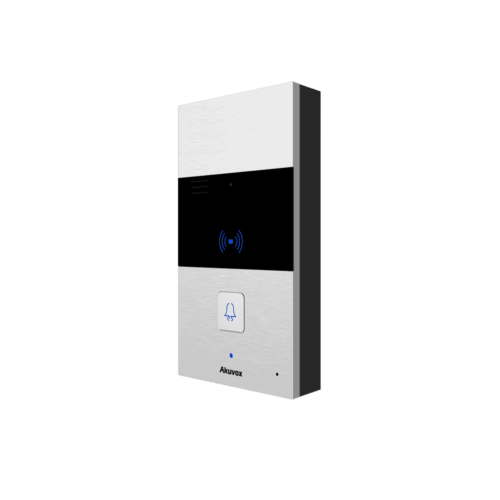

The Akuvox R23C SIP Intercom is a simple panel that provides unparalleled site security. Its elegant design elegantly adorns the front door of a villa or office. Highlights 1 RF card reader with a call button Physical characteristics Aluminum panel is used for the body. Button: There is one call button. 13.56MHz PoE IEEE802.3af RF card reader Power consumption: 12V DC input, IP65 rated enclosure Mounting: flush mounting Dimensions: 190x110x35mm Interface Specifications 1xRJ45 Ethernet 10/100M Mbps port Output relay: two relays for an open door opener with an RS485 port. SIP v1 (RFC2543) and SIP v2 are supported (RFC3261) 2 SIP accounts are listed on this line. Features 1 IP67-rated built-in microphone G.711a, G.711, G.722, and G.729 codecs The following factors influence the quality of speech: Echo cancellation at 7kHz Detecting voice activity Noisemaker for relaxation Network Characteristics For auto-provisioning, use static IP or DHCP 802.1Q VLAN NTP.
- There is one dialing button.
- Audio of exceptional quality.
- Remote door opener RF card reader with SIP/PoE/IP65 support.
- Auto-provisioning via FTP / TFTP / HTTP / HTTPS / PnP / DHCP Configuration management is classified into two types.
- Web-based administration and auto-provisioning
- TR069 SNMP Application Scenarios Office door phone that connects to an on-premises or cloud-hosted IP PBX This intercom is ideal for use as a mansion intercom with door access control.
- Control a remote site that can be accessed via the internet.
